The SC 115 Sliding Door System is a high-performance solution crafted for both luxury residential and commercial applications. Designed to accommodate spans up to 118″ (3000 mm) in width and height, it provides uninterrupted views and a smooth indoor–outdoor connection while meeting demanding performance criteria.
Why Choose the SC 115?
-
Expansive Openings – Achieves heights and widths up to 118″ (3000 mm), perfect for panoramic views and abundant natural light.
-

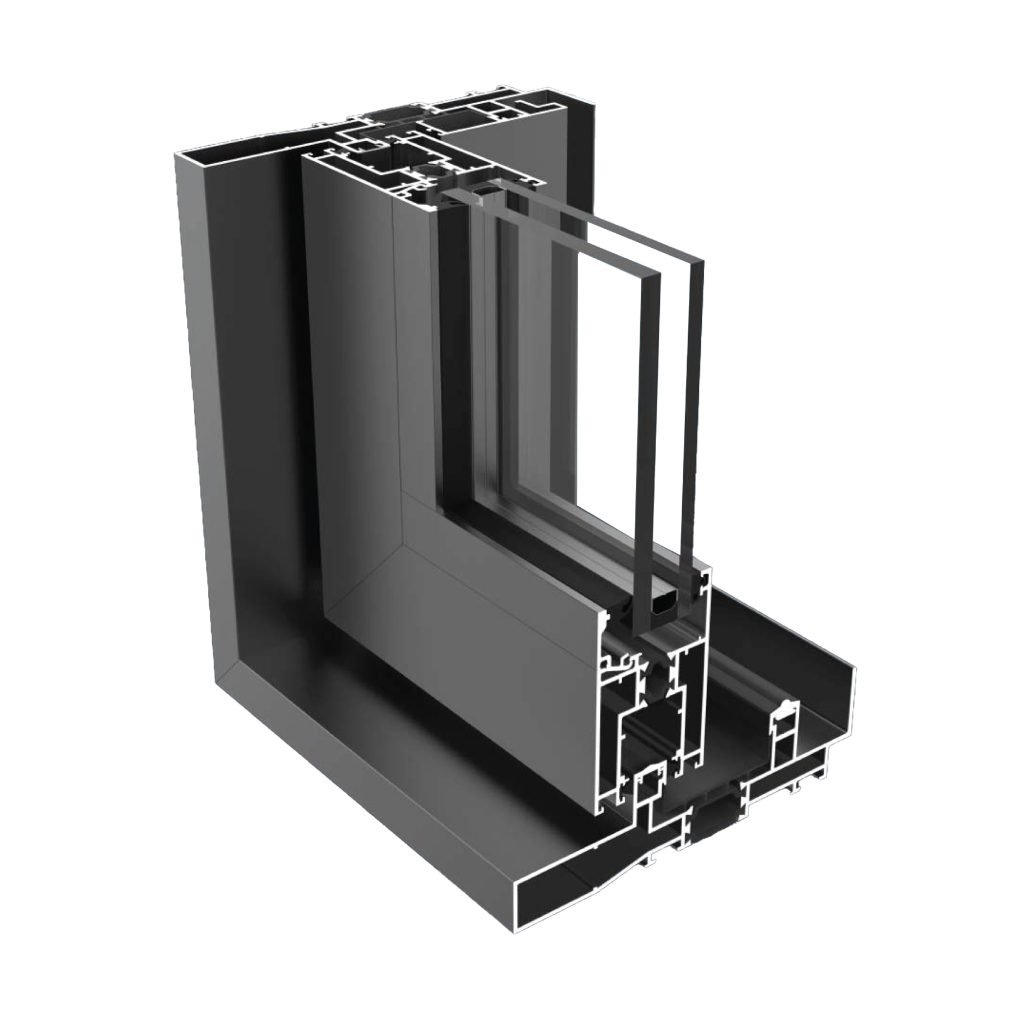

Robust Frame Design – 4 ½″ (115 mm) double-track depth with polyamide thermal barrier ensures strength, durability, and thermal performance.
-

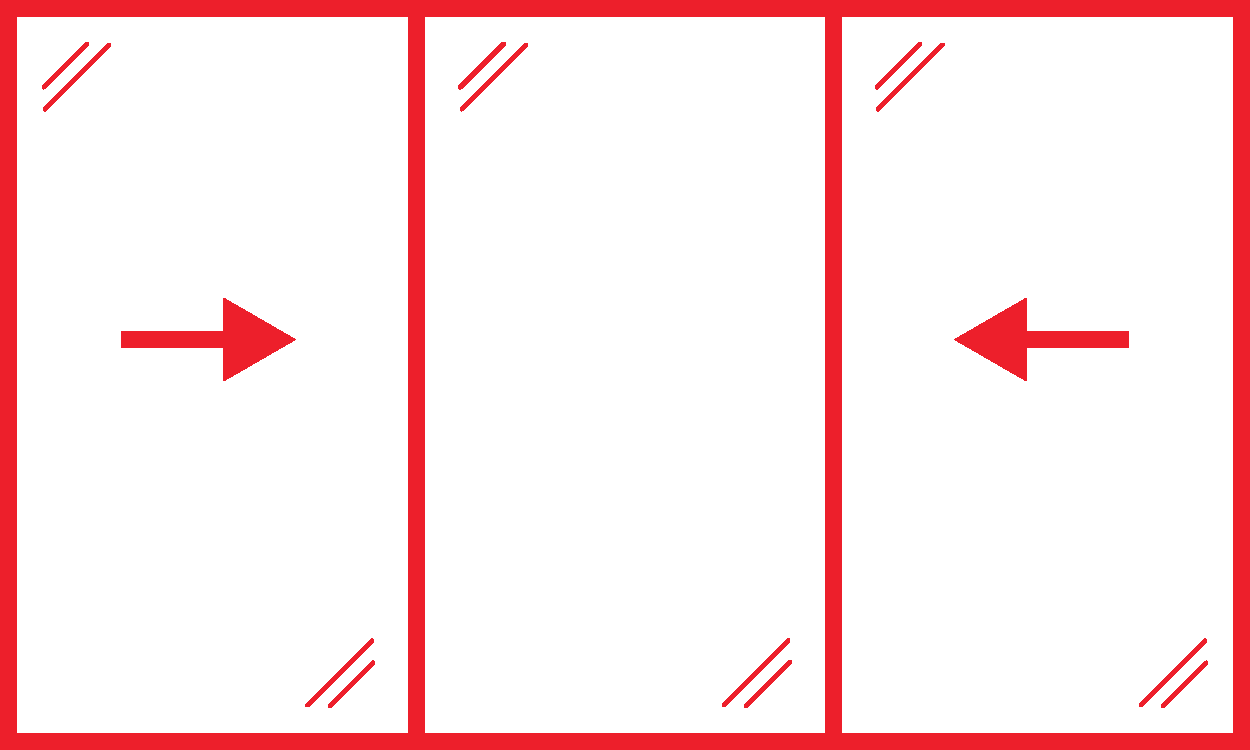

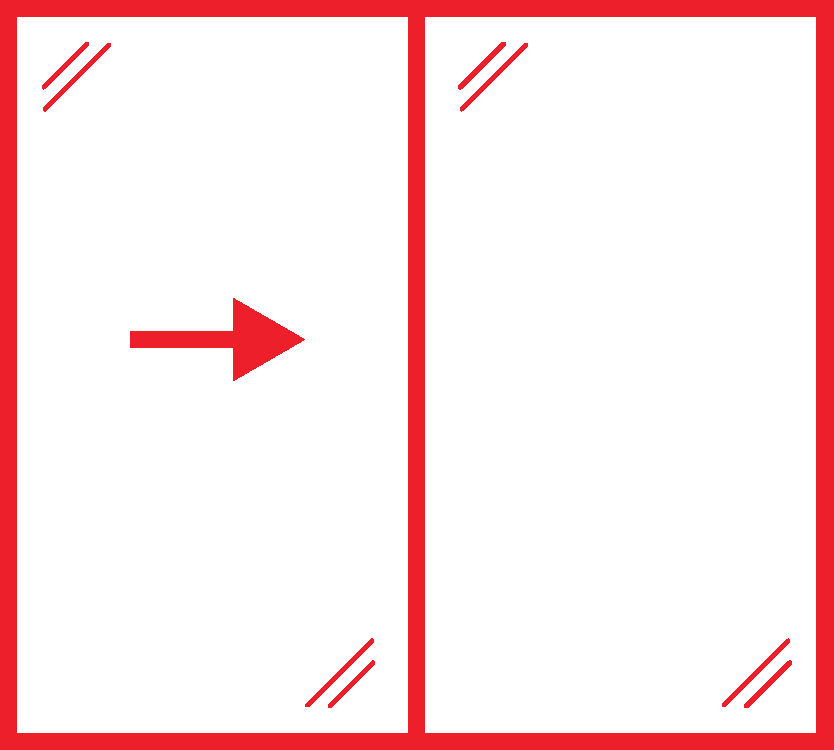

Customizable Layouts – Offered in double or triple-track configurations to suit project requirements.
-
Efficient Fabrication – Symmetrical profile design allows inner and outer panels to share accessory components.
-
Heavy-Duty Capability – Handles sashes up to 441 lbs (200 kg) without compromising smooth operation.
-
Optimized Glazing – Supports 1″ to 1 5⁄16″ (25.4 – 32 mm) insulated glass units for energy efficiency and acoustic control.
-
Enhanced Comfort – Our sliding door system comes with multipoint locking, NAFS AW65 rating, and included insect screens ensure performance and usability.
Tested To:
- ASTM E330
- ASTM E283
- ASTM E331
- NFRC 100
