G-Wall Bi-fold Door

G-Wall Bi-Fold Door

Innovative technology at its peak, with greater design and constructive flexibility

The GUTMANN G-WALL meets all architectural specifications, providing an above-ground, bottom-running configuration with various threshold options. Engineered for optimal load-bearing capacity, the hardware components and systems feature slender sightlines, oversized doors, and minimal profiles.

Doors can swing inward or outward with identical profiles. The sash and outer frame have the same depth, optimizing thermal efficiency.

This inline system features custom hardware, ensuring high performance and an aesthetically pleasing and robust door.

System Properties of Classes

Air Leakage

Air Leakage

ASTM E 283-04 (2012)
0.01 cfm/ft2 @ 1.57 PSF (75 Pa)
Water Penetration

Water Penetration

ASTM E 547 - 00 (2009)
4.59 psf (220 Pa)
Structural Performance

Structural Performance

ASTM E330-14
up to +-45.11 psf (+-2160 Pa)
Forced Entry Resistance

Forced Entry Resistance

ASTM F 842-14
Type A Grade 10
Passed
Thermal Transmittance (U-Factor)

Thermal Transmittance (U-Factor)

AAMA 1503-09
0.40 (DGU) with Steel Spacer

This value may vary according to glass
choice, framing configuration, and
spandrel to vision ratios.

Optional Features

  • Maximum weight 120kg per panel, Maximum height 3000 mm (9’ and 10.11”) Maximum width 1200mm (3’ and 11.24”)
  • Multiple threshold options and Adjustable jamb options available
  • Ultra-smooth bottom running
  • Same depth sash and outer frame
  • Dual color and special finishes available
  • Color matched handles and magnetic door holders
  • Every conceivable configuration achievable up to a maximum 7 Left 7 Right with bottom rolling
  • 30mm polyamide thermal break for increased thermal values: 1.4W/(m2.k)
  • Document Q compliant including PAS 24 and BS6375 Part 1 weather testing
  • Tested to AAMA, ASTM, and CSA standards

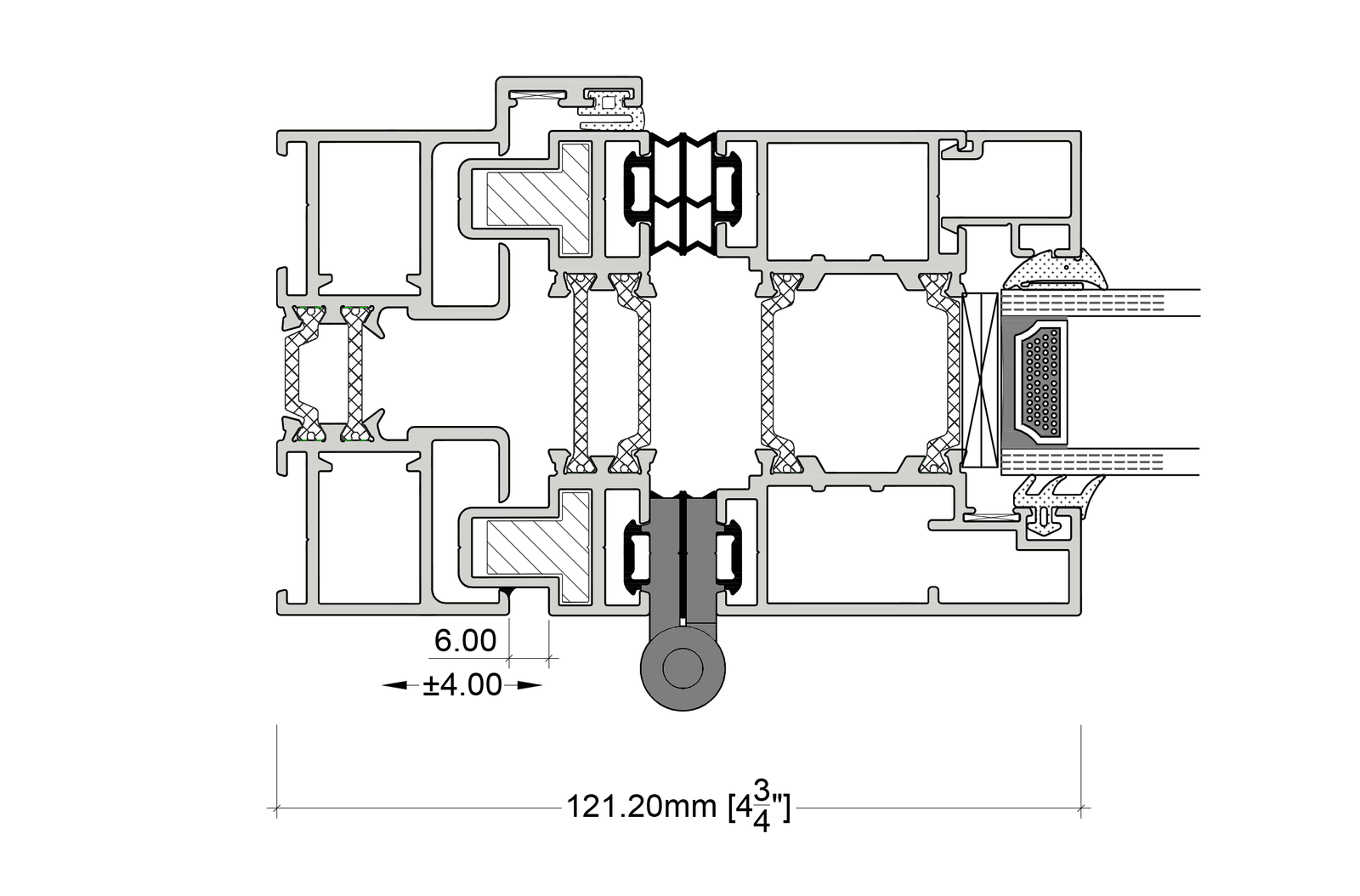

System Cross-section

Product Data Sheets

Branded installation manual
File Name: Branded-installation-manual.pdf
File Size: 3.49 MB
