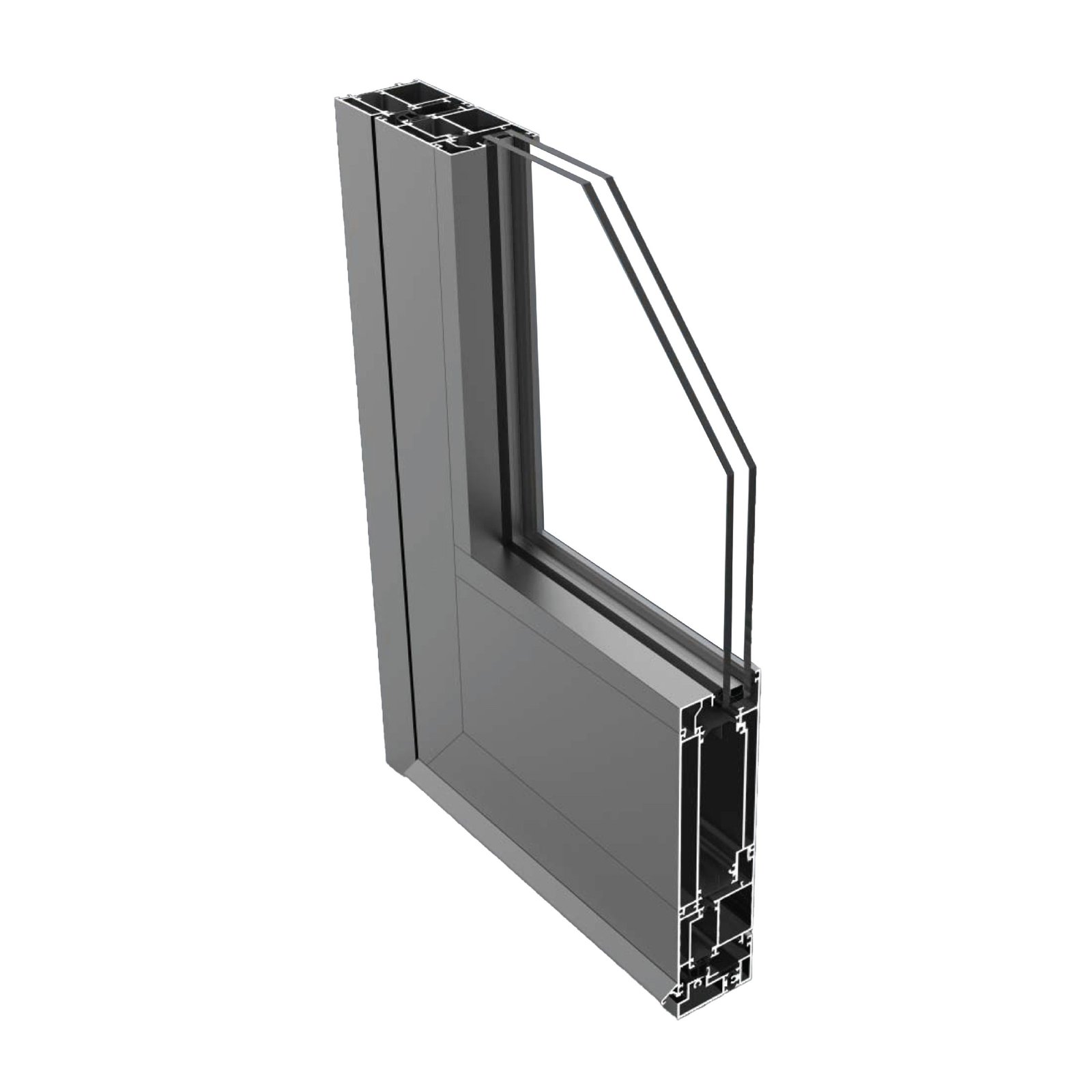

The GUTMANN S70+ Outswing Terrace Door is a premium architectural access solution tailored for high-rise, mixed-use, multi-residential, and commercial projects. Built with advanced polyamide thermal barriers, it brings together superior energy efficiency, structural stability, and sleek aesthetics. Certified to NAFS AW90, it meets stringent standards for performance, security, and durability while offering seamless integration with GUTMANN’s façade systems.
Best-in-Class Water Resistance
One standout advantage of the S70+ is its exceptional water penetration resistance—achievable up to 13 psf or higher, depending on the sill configuration. This matches or exceeds performance levels commonly achieved by top-tier terrace door systems, such as AAMA-rated models tested at 12 psf in size-tested assemblies .
Architectural Flexibility & Performance
-

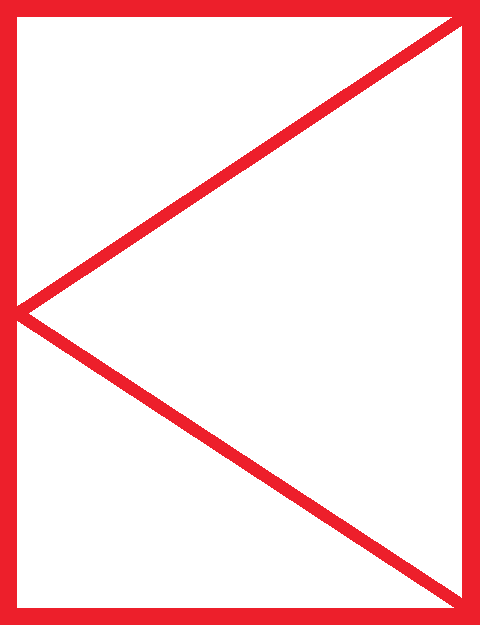

Configurations: Available in single leaf, double door, and variants with sidelites, offering design versatility.
-
Dimensions:
-
Top & Bottom Rail: 3″ (75 mm)
-
Frame Depth: 2 ¾″ (70 mm)
-
Threshold Height: 1″ (25 mm) – low threshold variant available for ADA compliance
-
-
Glazing Compatibility: Supports double-glazed sealed units from 1″ to 1 ⅞″ (25.4–48 mm).
-
High Structural Integrity: NAFS AW90 rating ensures top-tier performance in air, structural, and impact testing.
-
Thermal Efficiency: Polyamide thermal break minimizes heat transfer, reducing energy load and improving occupant comfort.
-
Aesthetic Harmony: Sleek profile design aligns visually with modern façades and other GUTMANN systems.
Tested To:
- ASTM E330
- ASTM E283
- ASTM E331
- NFRC 100
