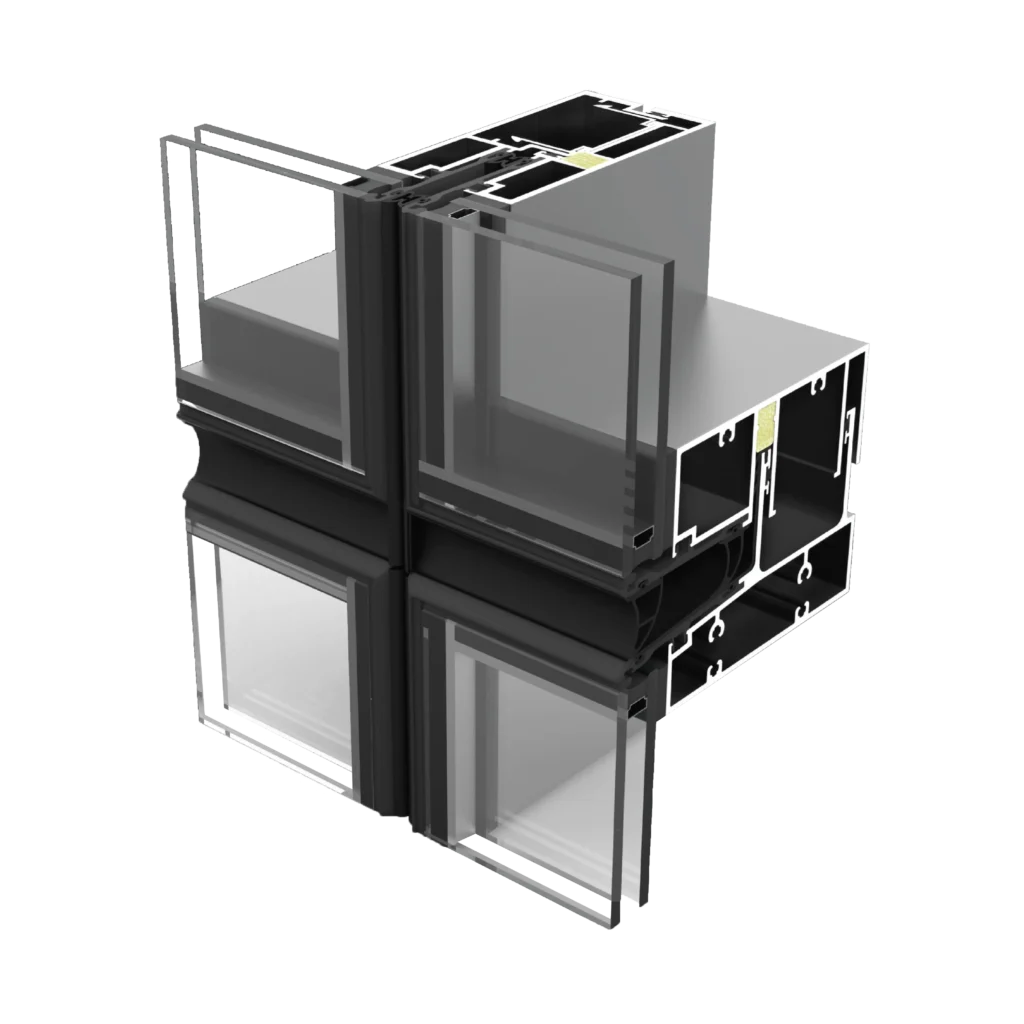

UCW 65 IS a factory assembled and glazed curtain wall system designed for speed of installation and the most demanding structural requirements out of all glass building envelopes, high rise buildings and towers. This high performing unitized curtain wall system includes continous polyamide thermal strips and extruded foam for best in class thermal performance, and a double chickenhead construction for improved water and air tightness. GUTMANN UCW 65 can be modified for specific projects based on wind load requirements, integration of sunshades and louvres, and UHPC And GFRC panels for modular, prefab building enclosures.
• Standard infill option 1” [25.4mm], other infill’s available
• 2-1/2” x 4-7/8” [65mm x 125mm] profile, other profiles can be designed as per project requirements
• Available as captured, 2 Sided SSG, Horizontal or Vertical, 4 Sided SSG
• Extruded EPDM or silicone air and weather seal gaskets
• Structural extruded silicone glazing spacer is compatible with structural silicone sealants
• Continuous polyamide thermal break vertically and horizontally, providing ultra-thermal
performance levels in a cost-effective window wall system
• Options of any finish
